Dust Free Cloth 24In Touch Panel LCM Assembly EETI Controller

Brand Name : Master Touch

Model Number : MST-TMS-24-G2

Place of Origin : Suzhou, Jiangsu, China

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000~100000 pieces/Month

Delivery Time : 5-8 days

Packaging Details : carton

LCD Model : G240UAN01.0

Touch Points : 10

Screen Contrast : 1000 : 1 (Typ.)

Viewing Angles : 89/89/89/89 (Typ.)(CR≥10)

Signal System : 51 pins LVDS (2 ch, 10-bit)

TFT thickness : 17.15mm

TP thickness : 3.9mm

Interface information driven plate : USB

Contact Now

Master Touch 24 Inch EETI Controller Dust-free Cloth LCM Touch Panel Assembly

1. Product Description

Master Touch 17 inch Touch Panel+LCM (Tape Bonding) is the lamination of touch panel and the LCD module. That is, the four sides of the touch panel and the LCD screen are laminated with the glue, and there will be an air layer between the two. The advantages are that the lamination is simpler, the process is more mature, the yield is more stable, and the cost is lower, and it is easy to disassemble.

2. Genaral Specification

2.1 LCD

Size 24 inch
Resolution 1920(RGB)×1200 WUXGA 94PPI
Luminance 900 cd/m² (Typ.)
Contrast 1000 : 1 (Typ.)
Viewing Angles 89/89/89/89 (Typ.)(CR≥10)
Signal System 51 pins LVDS (2 ch, 10-bit)
Operating frequency 60Hz
Driving Voltage 12.0±1.2V

TFT thickness

 17.15mm

2.2 Touch Panel

Outline Dimension 546.4*352 mm
View Area 518.8*324.4(24 inch) mm
TP thickness 3.9 mm
Total 22.05 mm
Touch IC EETI80H83 --
Number of touchpoint 10 points
Number of button -- -

Interface information driven plate

 USB -
The active information -- --
The type of Bonding with LCD Frame bonding
Operation Temperature -20℃~70℃ ℃

Storage

(cannot exceed 6 months)

Temperature: 23±3℃ (Before installation)

Humidity:40%~70%RH

 ℃
Temperature: -30~80℃ (After installation) ℃
2.3 Optical Spec.
Item

Content
Transparency 85±10%

2.4 Electrical Spec.

ESD Touch Side (Touch) 4kv
ESD Touch Side (Air) 8kv

3. Reliability

Item Specifications Remark

High Temperature Operation

 70ºC, 48hrs --
Low Temperature Operation -20 ºC, 48hrs Non-condensing

Operating Temperature/ Humidity

 60ºC/90%RH, 500hrs Non-condensing
Thermal Shock

-30 ~ 80℃, 60 mins/cycle, total

48 cycles

 --

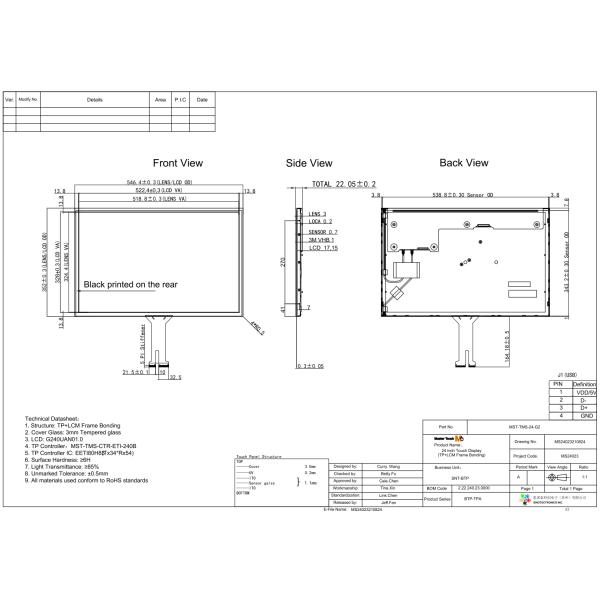

4. Drawing

Dust Free Cloth 24In Touch Panel LCM Assembly EETI Controller

5. Details

Dust Free Cloth 24In Touch Panel LCM Assembly EETI Controller

6. Notice

Due to the system of capacitive touch screen is made of glass, Please do not strong impact, The impact, Or Fall from height;

Please do not stack up TPs. Don’t load on TP;

Please do not put the capacitive touch screen itself or FPC direct contact with metal material;

When assembling, please do not bend or strength to pull FPC, Avoid to cause the injured;

When assembling, please do not touch ink face of back of TP, Avoid to scratches;

When assembling, please do not contact the visual area, if have dirty in VA, Recommend the use of anhydrous ethanol to clean;

Operation of the capacitive touch screen, Use finger or conductive touch pen, please; must avoid high voltage and static electricity.

Dust Free Cloth 24In Touch Panel LCM Assembly EETI Controller
