LCD Module Touch Display EETI80W46 Touh IC 15 Inch Touch Screen Module
1. Product Description
The touch screen can be divided into three types according to the way of lamination: full lamination, 0 lamination, and frame lamination.
Full lamination is a technical process in which the LCD screen and the touch screen are seamlessly and completely bonded together with OCA or LOCA. It has the advantages of high production efficiency, uniform thickness, no glue overflow problem, controllable bonding area, no corrosion problem, and simple maintenance.
2. Genaral Specification
2.1 LCD
| Model | DV150X0M-N10 |
| Size | 15 inch |
| Resolution | 1024(RGB)×768 [XGA] 85PPI |
| Luminance | 350 (Typ.) |
| Contrast | 1000 : 1 (Typ.) |
| Viewing Angles | 89/89/89/89 (Typ.)(CR≥10) |
| Signal System | LVDS (1 ch, 8-bit), 20 pins |
| Operating frequency | 60Hz |
| Driving Voltage | 3.3 V (Typ.) |
| TFT thickness | 10mm |
2.2 Touch Panel
| Outline Dimension | 326.5*253.5 | mm |
| View Area | 305.13*229.1 (15 inch) | mm |
| TP thickness | 4.3 | mm |
| Total | 14.5 | mm |
| Touch IC | EETI80W46 | -- |
| Number of touchpoint | 10 | points |
| Number of button | -- | - |
| Interface information driven plate | USB | - |
| The active information | -- | -- |
| The type of Bonding with LCD | Optical bonding | |
| Operation Temperature | -20℃~70℃ | ℃ |
| Storage (cannot exceed 6 months) | Temperature: 23±3℃ (Before installation) Humidity:40%~70%RH | ℃ |
| Temperature: -30~80℃ (After installation) | ℃ |
2.3 Optical Spec.
| Item | Content |
| Transparency | 85±10% |
2.4 Electrical Spec.
| ESD Touch Side (Touch) | 4kv |
| ESD Touch Side (Air) | 8kv |
3. Reliability
| High Temperature Operation | 70ºC, 48hrs | -- |
| Low Temperature Operation | -20 ºC, 48hrs | Non-condensing |
| Operating Temperature/ Humidity | 60ºC/90%RH, 500hrs | Non-condensing |
| Thermal Shock | -30 ~ 80℃, 60 mins/cycle, total 48 cycles | -- |
4. Drawing
5. Notice
Due to the system of capacitive touch screen is made of glass, Please do not strong impact, The impact,Or Fall from height;
Please do not stack up TPs. Don’t load on TP;
Please do not put the capacitive touch screen itself or FPC direct contact with metal material;
When assembling, please do not bend or strength to pull FPC, Avoid to cause the injured;
When assembling, please do not touch ink face of back of TP, Avoid to scratches;
When assembling, please do not contact the visual area, if have dirty in VA, Recommend the use of anhydrous ethanol to clean;
Operation of the capacitive touch screen, Use finger or conductive touch pen, please; must avoid high voltage and static electricity.

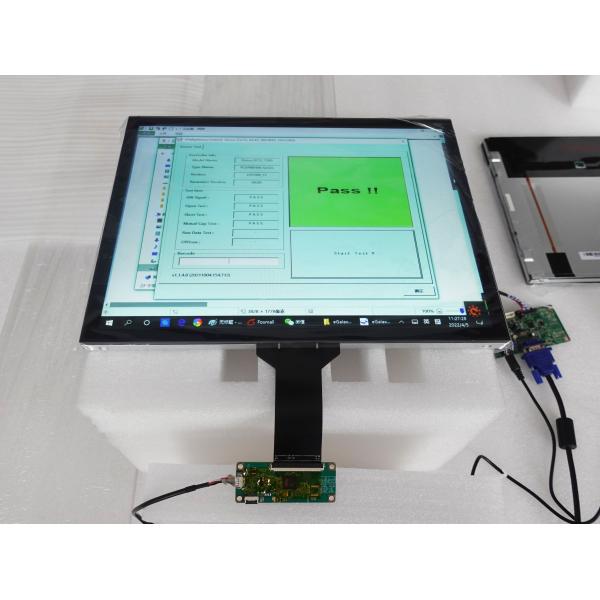

6. Details
7. FAQ
